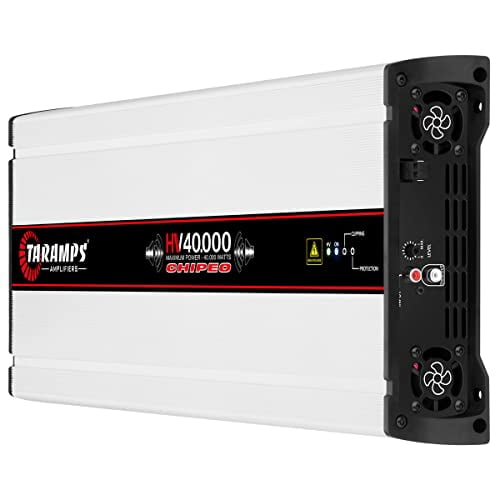

Taramps HV 40000 Chipeo High Voltage Amplifier 0.5 Ohm 40000 Watts Rms 1 Channel with 18 batteries 227VDC Output Power Monoblock Car Audio Amp Class D

Taramps HV 40000 Chipeo High Voltage Amplifier 0.5 Ohm 40000 Watts Rms 1 Channel with 18 batteries 227VDC Output Power Monoblock Car Audio Amp Class D

• strength, income and performance are some of the synonyms of this amplifier module, it has a maximum power of 40.000 watts rms at 0.5 ohm, thermal protection and anti short circuit, it is powered by batteries in series.
• Taramp's
• HV 40000 CHIPEO
• member of a unique line in its category, delivering extremely high power in medium and large automotive sound systems. emphasis for subwoofer to high midrange, with high tone performance and sound quality.
• operation class class d, number of channels 01, maximum power @227vdc - 0.5 ohm 40.000w rms, input sensitivity 330mv (level 100%) @ 0,5 ohm, signal to noise ratio >95db, frequency response 10hz - 15khz (0.5db), efficiency (es) 92% @0.5 ohm
• input impedance 27k ohms, protection system short-circuit to output, short on output compared to gnd, low impedance at output, high/low supply voltage and thermal protection, min. supply voltage 140vdc
• maximum power supply voltage 275vdc, consumption at rest 110ma, maximum music consumption @0.5 ohm: 91.5a, maximum consumption in sinusoidal signal @0.5 ohm (100hz): 183a, dimensions (h x w x d) 8.98-in x 2.52-in x 22.07-in, weight 12.54lb
