Rain Bird XBD81 Xerigation Xeri-Bird Drip Irrigation 8 Outlet

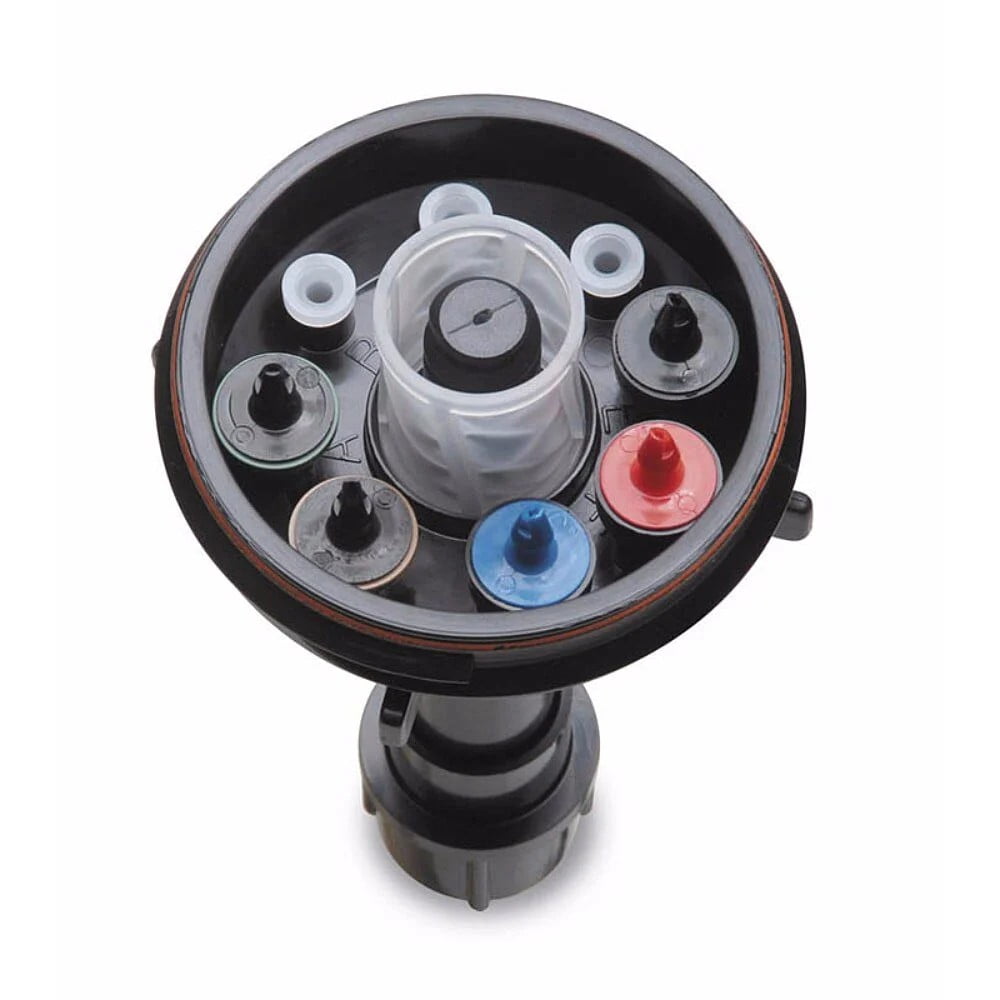

The Rain Bird XBD81 is a factory-assembled Xeri-Bird 8 multi-outlet drip emission device designed for efficient water distribution in micro-irrigation systems. It threads onto any ½-inch riser and delivers water to up to eight locations, making it ideal for both new installations and retrofits. This model comes pre-installed with eight 1.0 GPH Xeri-Bug emitters and includes an integral 200 mesh (75 micron) filter that’s serviceable from the top. Each of the eight barbed outlets securely retains ¼-inch distribution tubing and can be configured with interchangeable emitters or pressure-compensating modules for flows ranging from 0.5 to 24 GPH per outlet. Alternatively, unrestricted flow is possible using self-piercing barb connectors. The XBD81 features a union base nut for easy removal from the riser, simplifying maintenance. It operates within a pressure range of 15 to 50 PSI, and for optimal performance, emitters must be installed inside the device to prevent back pressure leakage

• ‌8 Pre-Installed Emitters: Comes with eight 1.0 GPH Xeri-Bug emitters for consistent micro-irrigation.
• Multi-Outlet Design: Delivers water to up to eight locations from a single ½" riser.

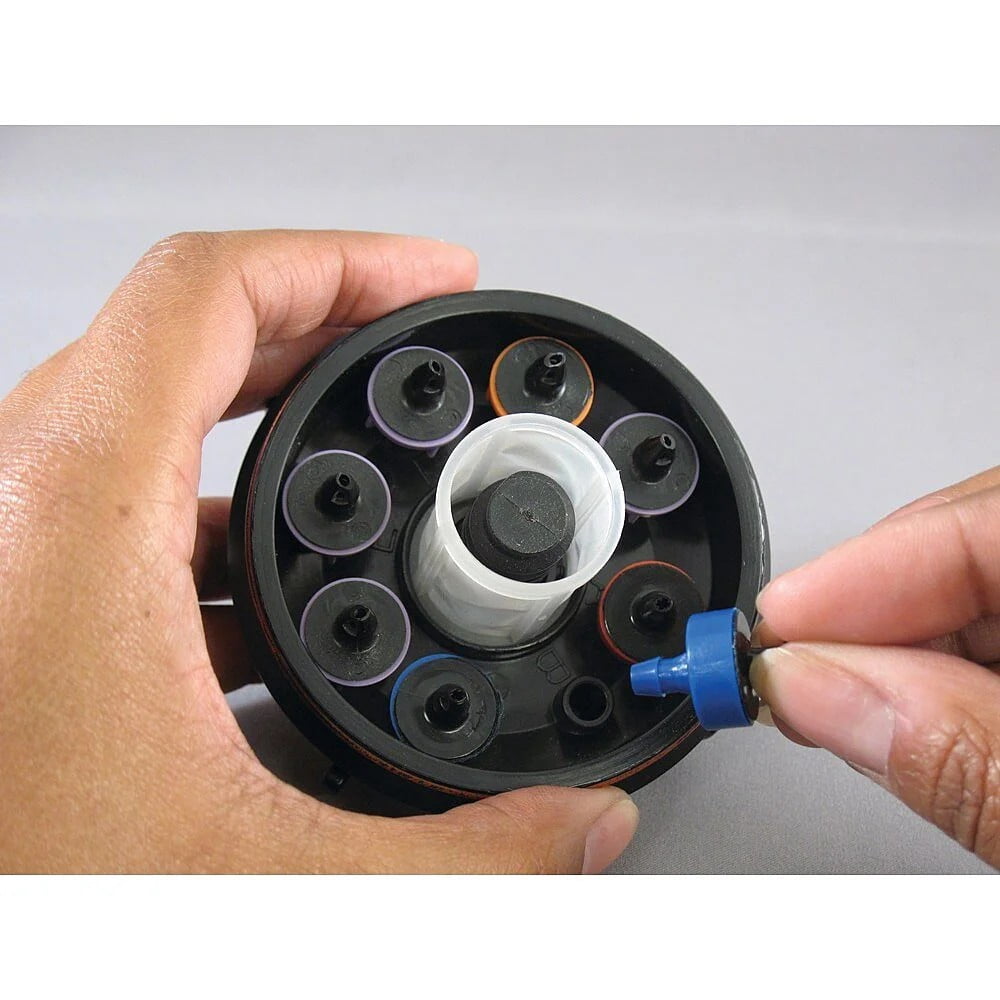

• Configurable Flow: Each port supports interchangeable emitters or pressure-compensating modules for flows from 0.5 to 24 GPH, or unrestricted flow via barb connectors.
• 200 Mesh Filter: Integral 75-micron filter is serviceable from the top for easy maintenance.
• Union Base Nut: Allows quick removal from riser for cleaning or replacement.
• Sure-Grip Barbed Outlets: Securely retain ¼" distribution tubing (XQ).
• Operating Pressure: 15 to 50 PSI (1.0 to 3.5 bar).
• Flow Range: 0.5 to 24 GPH per outlet, depending on emitter configuration.
• Emitter Placement: Emitters must be installed inside the unit to prevent back pressure leakage.
