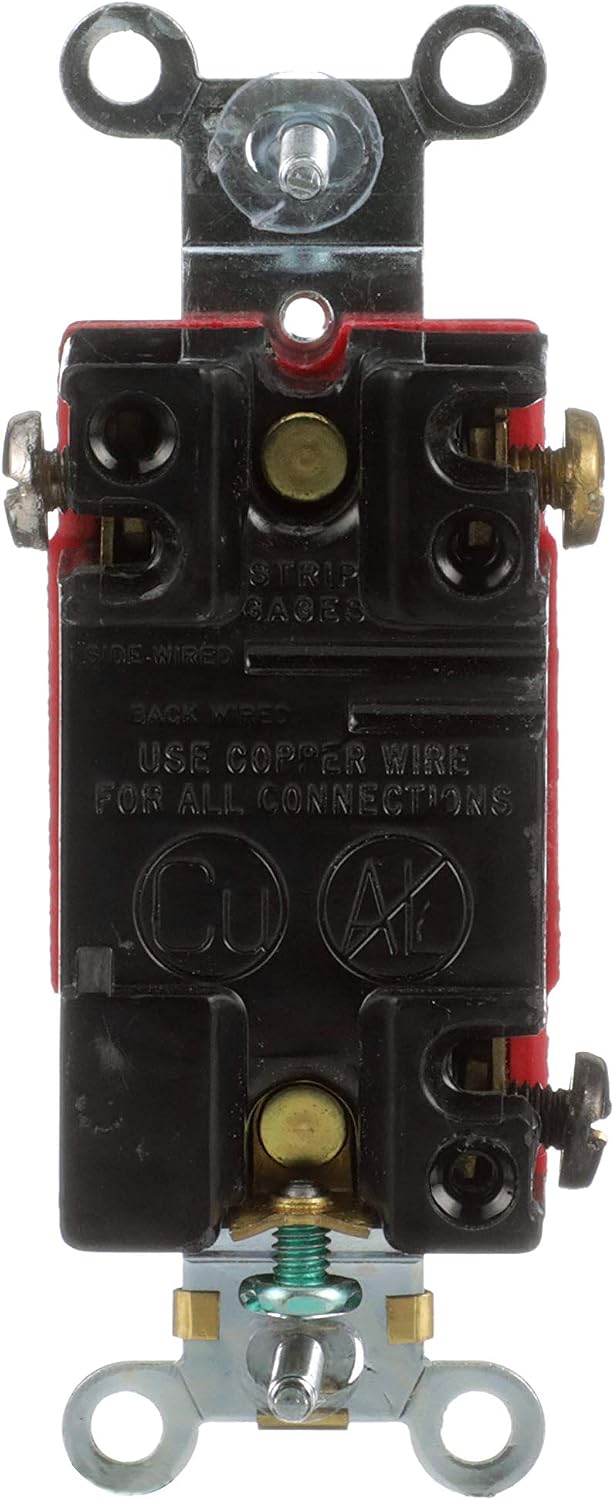

Eaton AH1221PL 20 Amp 120/277V Industrial Grade Toggle Switch with Pilot Light, Red
Product details
| Management number | 229762230 | Release Date | 2026/05/31 | List Price | US$5.14 | Model Number | 229762230 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Eaton AH1221PL 20-Amp 120/277-Volt Industrial Grade Toggle Switch - Back & Side Wire version glows in "on" position, lighted version glows when "off". Industrial design cam action mechanism insures quiet switch action. Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections. Color-coded faces identify amperage: blue=15 amp, red=20 amp, green=30 amp. Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure. Back and side wire terminals accept up to no. 10 solid or stranded wire. Ground screw terminal standard. 0.050" (12.7mm) thick steel mounting strap zinc-plated for corrosion resistance. 120/277V/AC rating ideal for fluorescent lighting fixtures typical in commercial applications. Combination slot/Phillips head mounting and terminal screws ease installation with power screwdrivers (slot/Robertson screws in Canada where available).
- Back & Side Wire version glows in "on" position, lighted version glows when "off"
- Industrial design cam action mechanism insures quiet switch action
- Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
- Color-coded faces identify amperage: blue=15 amp, red=20 amp, green=30 amp
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure
| UPC | 032664706455 |
|---|---|
| ASIN | B00HJIWNZG |
| Color | Red |
| Model | AH1221PL |
| Voltage | 120 Volts |
| Terminal | Screw |
| Brand Name | Eaton |
| Unit Count | 1.0 Count |
| Part Number | AH1221PL |
| Switch Type | Toggle |
| Circuit Type | single_pole |
| Control Type | On/Off |
| Manufacturer | Cooper Wiring |
| Material Type | Metal |
| Mounting Type | Wall Mount |
| Connector Type | Quick Connect |
| Current Rating | 20 Amps |
| Operation Mode | Automatic |
| Maximum Current | 20 Amps |
| Contact Material | Metal |
| Operating Voltage | 120 Volts (AC) |
| Specification Met | cUL |
| Compatible Devices | Lights, fans, small appliances, etc. |
| Dielectric Strength | 277 volts |
| Included Components | Item |
| Number of Positions | 2 |
| Warranty Description | No Warranty |
| Insulation Resistance | 20 Megaohms |
| Smart Home Compatibility | Not Smart Home Compatible |
| Global Trade Identification Number | 00032664706455 |
