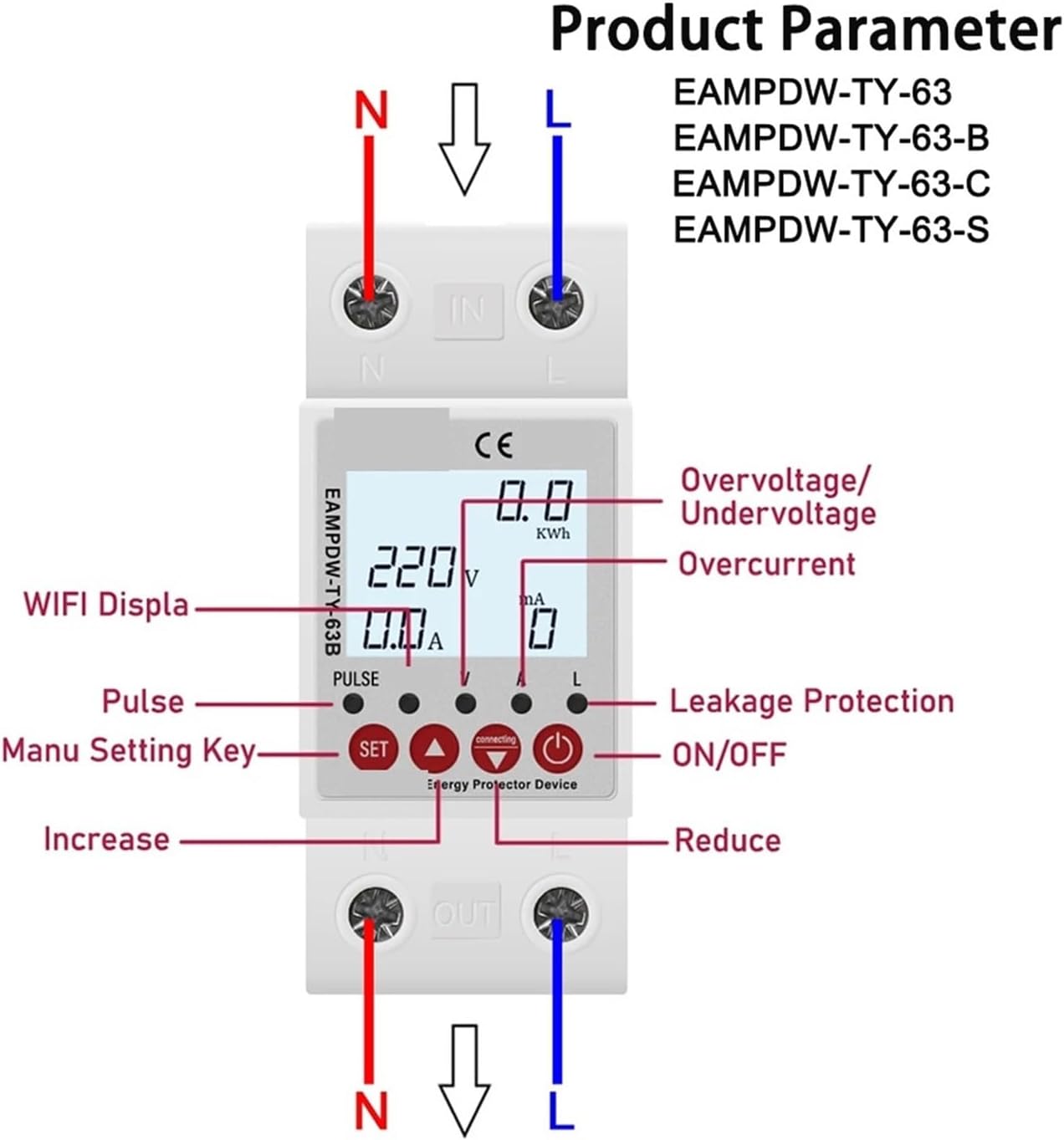

EAMPDW-TY-63 63A 230V Power Meter (kW/Wh)(EAMPDW-TY-63-C)

Meter Sockets2P 63A 230V Electricity Meter, Power Meter (kW), Leakage Current, Over/Under Voltage Protector, Relay Device, Circuit BreakerProduct SpecificationsRated voltage: 230V; Frequency: 50Hz/60HZEAMPDW-TY-63B Functions:1. Undervoltage protection 90V-190V (adjustable) (default 170V)2. Overvoltage protection 100V-300V (adjustable) (default 270V)3. Overcurrent protection 10A-80A (adjustable) (default 50A)4. Reconnection time (delay start time): 5s-90s (default 30s)5. Leakage protection: 10-99mA6. Backlight duration: Approximately 15 seconds7. Battery level display range: 0-99999.9kWh8. Energy consumption recording range: 10-500kWh (default 30kWh)EAMPDW-TY-63 / EAMPDW-TY-63C / EAMPDW-TY-63S Function:1. Undervoltage protection 80V-210V (adjustable) (default 175V)2. Overvoltage protection 120V-300V (adjustable) (default 275V)3. Overcurrent protection 1A-63A (adjustable) (default 63A)4. Reconnection time (delay start time): 10s-90s (default 30s)5. Leakage current protection: 10-99mA (This function can be turned off)6. Overcurrent/leakage reconnection count: 1-30/off (adjustable) (default 5 times). This function can be turned off.7. Temperature protection: 10-85°C (adjustable) (This parameter can only be set in the app)8. Battery level display range: 0-99999.9kWh9. Energy consumption recording range: 10-500kWh (default 30kWh)PS: This device has a memory function. When the power is cut off, the device can remember the kWh, overvoltage, undervoltage and overcurrent values.Battery included: NoDimensions: 85mm * 36mm * 65mmOperating temperature: -30 to 70°COutput voltage: 220VAccuracy level: 1Energy measurement range: 0-99999.9 kW/hNumber of phases: Single phaseModel: EAMPDW-TY-63Maximum operating current: 19A and belowRated voltage: 230VPower supply: Alternating currentDisplay type: Number onlyDIY supplies: electrical appliancesPlace of origin: Mainland ChinaCertification: CE
