AT527K Battery Tester Resistance Test Range 0.0001mΩ~3kΩ, AC Resistance Tester Voltage Test Range 0.00001~1500.00V

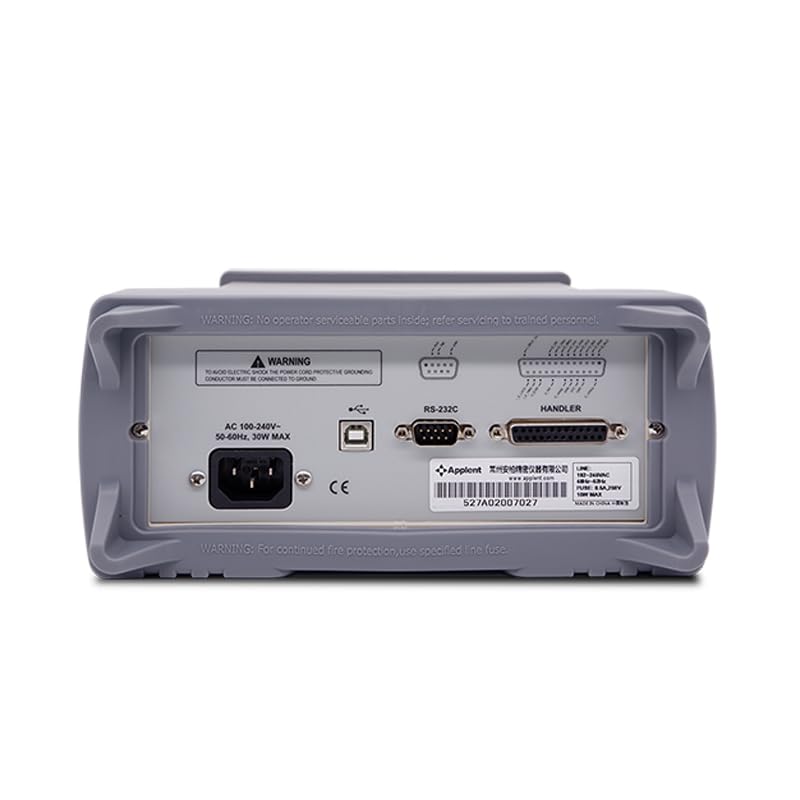

The AT527K is a miniature desktop instrument for fully automated real-time inspection controlled by a high-performance 32-bit ARM microprocessor. Instrument use 4.3Inch true color LCD display, full touch operation, a new instrument interactive experience. The instrument can test resistance of 0.0001mΩ~3.3kΩ, DC voltage of 0.00001~1500.00V, resistance 33,000 display bits, voltage 100000 display bits. The AT527K offers both high precision, high resolution and ultra-high speed measurement, providing 0.5% resistance accuracy and 0.01% voltage accuracy, and measuring speeds of up to 55 times per second. The instrument is used for professional sorting function, standard Handler(PLC) interface, separate output resistance HIGH/IN/LOW signal and voltage HIGH/IN/LOW signal, can fully cope with the high-speed automatic sorting system to complete the automatic pipeline test, while the enhanced IO signal can directly drive the power relay and signal relay. The instrument has built-in RS-232C interface and USB-232 interface, the instrument is equipped with standard general data acquisition software, with database function and Excel export function, which can be effectively used in remote control and data acquisition and analysis. Instrument use amber instrument enhance computer remote control instruction set, compatible SCPI (StandardCommandforProgrammable Instrument programmable control instrument standard command set) and Modbus protocol (Modbus has become the national standard GB/T19582-2008) are applied to the automatic sorting system to complete the automatic pipeline test. Efficiently complete remote control and data acquisition functions. The new and improved AC resistance test principle can be used for the internal resistance test of almost all batteries, including the pipeline inspection of lithium batteries, lead-acid batteries, button batteries and other batteries.

• 33,000 number AC resistance reading, 1000,00 number DC voltage reading
• Resistance test range: 0.0001mΩ~3kΩ
• Voltage test range: 0.00001V~1500.00VDC
• 0.5% resistance accuracy
• 0.01% voltage accuracy
• HANDLER interface
• RS-232C and USB communication interface
• U disk real-time storage full touch operation
